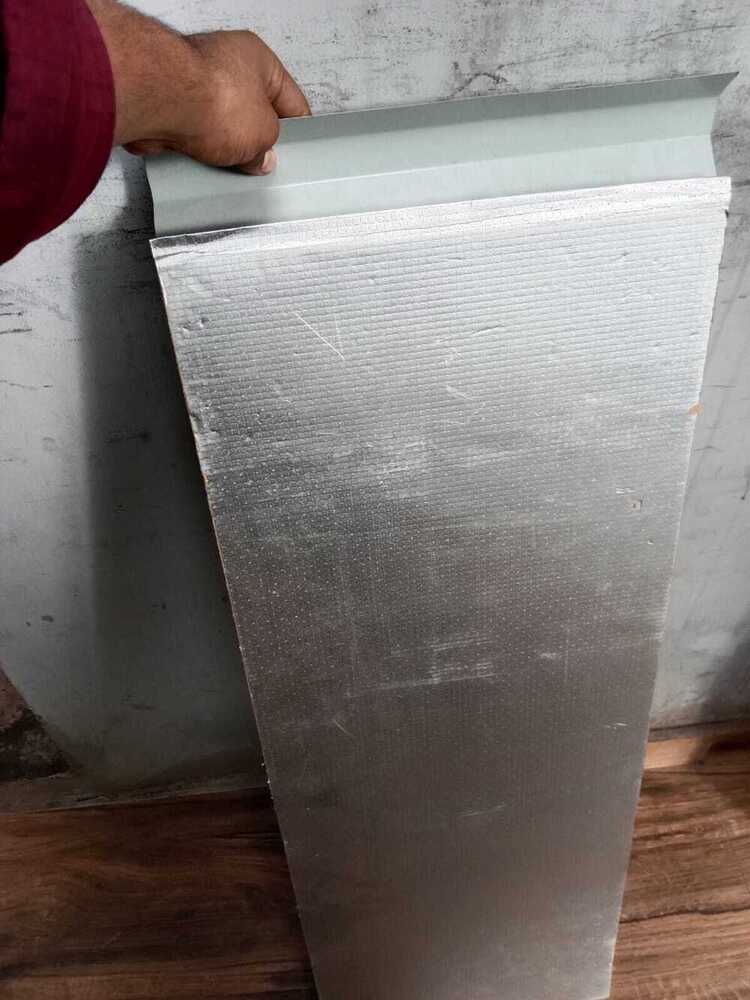

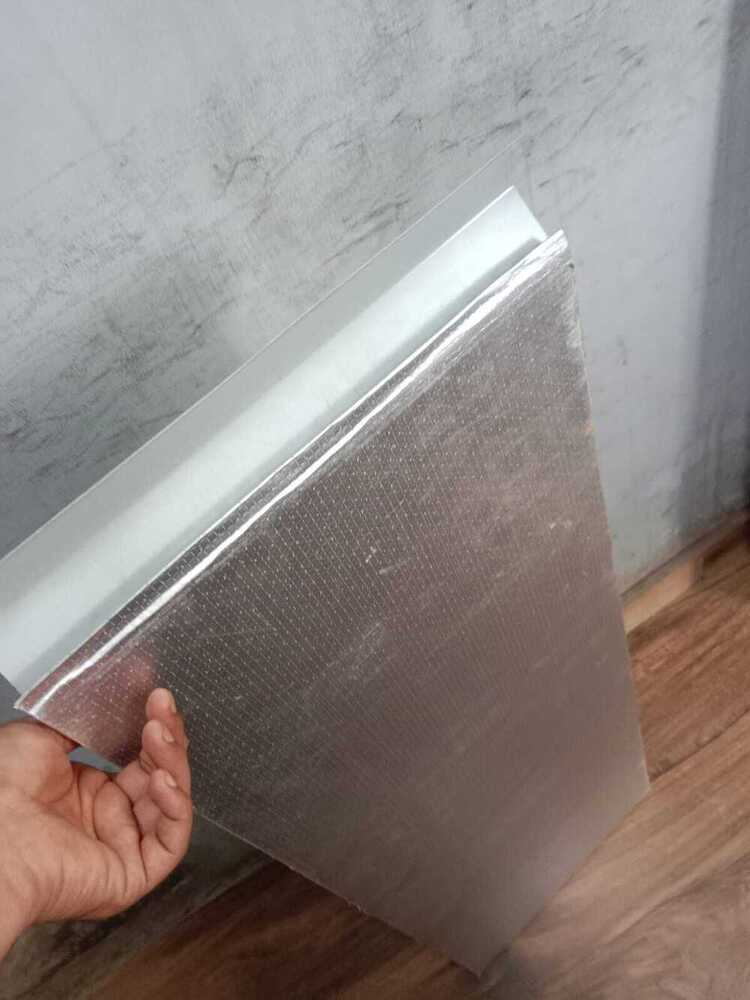

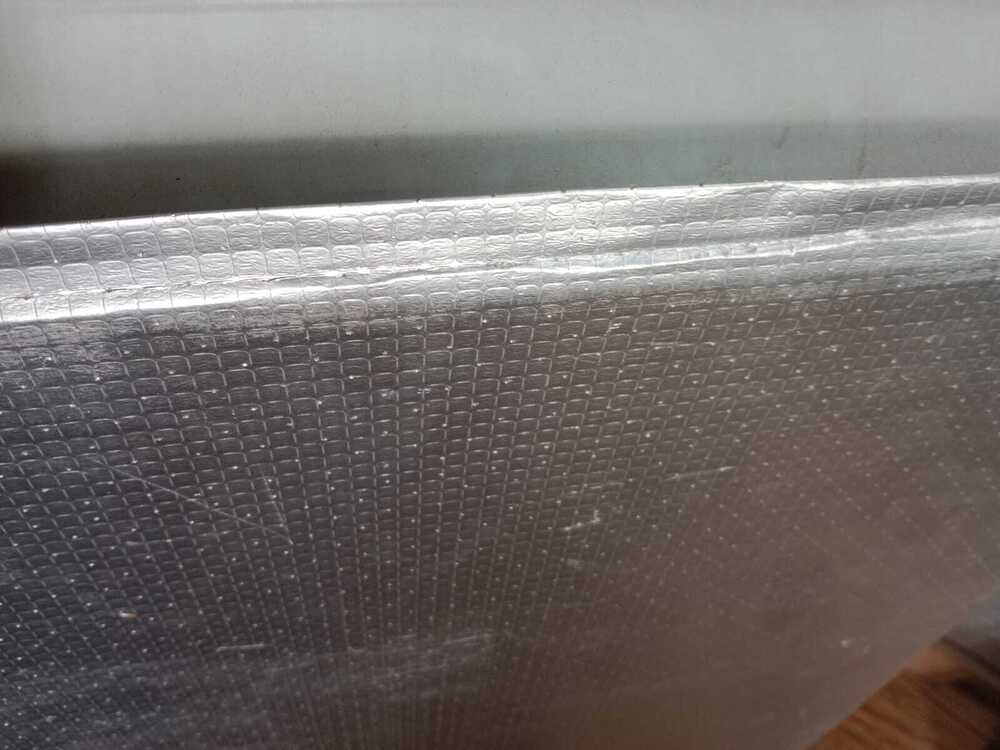

Insualted Roof Puf Panel

Name: Insualted Roof Puf Panel
Brand: SHANKAR STEEL SUPPLIERS
Price: 147 INR
Availability: InStock

Price 147 INR/ Square Feet

Get a Price/Quote

Insualted Roof Puf Panel Specification

Height
Not applicable (as per panel thickness)

Surface Treatment
Galvanized, Pre-painted, Silver Foil finish

Usage & Applications
Roofing for Cold Storage, Warehouses, Industrial Sheds, Prefabricated Buildings, Commercial and Residential Structures

Features
Pre-fabricated, Energy Efficient, Fast Installation

Roof Material
Metal Sheet (GI / PPGI) with PUF Core

Technics
Sandwich Panel Technology, Injection Moulded Foam

Material
PUF (Polyurethane Foam) with metal facing

Tile Material
Metal Sheet and PUF Core

Tile Type
Insulated Roof Panel

Type
Insulated, Sandwich Panel

Size
Standard or Custom as per requirement

Shape
Rectangular

Pattern
Plain and Silver Foil Finish

Heat Transfer Coefficient
Low (High Thermal Insulation, typical U-value 0.022-0.030 W/mK)

Thickness
30 mm to 150 mm (customizable)

Length
Up to 12 meters (customizable)

Width
1000 mm (standard effective width)

Top/Bottom Sheet Thickness
0.4 mm to 0.6 mm each

Joint Type
Tongue and Groove Interlocking

Sound Insulation
Up to 30 dB (varies by thickness)

Fire Rating
B2/B3 as per DIN 4102 (flame retardant)

Eco-Friendly
CFC and HFC Free Foam, recyclable panel

Thermal Conductivity
0.022 - 0.026 W/mK

Compressive Strength
0.20 N/mm2 (at 10% deformation)

Density of PUF Core
40 2 kg/m3

Panel Weight
Approx. 10-14 kg/m2 depending on thickness and facing

Water Absorption
< 1% by volume

Operating Temperature Range
-30C to +80C

Color Options
Standard White, Off White, or as per requirement

Installation Method
Screw/Clamp Fixing with Flashings & Sealants

Insualted Roof Puf Panel About

Unlock rare performance and prime durability with our Insulated Roof PUF Panel-an optimum solution for roofing requirements! Engineered with a high-density PUF core (402 kg/m3), these spectacular panels deliver superb thermal conductivity (0.022-0.026 W/mK), exceptional flame retardancy (B2/B3 rating), and up to 30 dB sound insulation. The interlocking tongue and groove design, along with eco-friendly, CFC and HFC-free materials, ensures fast installation and sustainable construction. Available in customizable lengths, thicknesses, and colors, these pre-fabricated sandwich panels redeem unmatched efficiency for cold storage, industrial sheds, and more.

Versatile Usage and Noticeable Advantages

Our Insulated Roof PUF Panels are ideal for cold storages, warehouses, industrial sheds, prefabricated buildings, and both commercial and residential structures. Installation is direct and efficient, using screw or clamp fixing with flashing and sealants. Unlock advantages such as energy efficiency, quick set-up, and robust weatherproofing. Their unique interlocking design offers seamless alignment, making them perfect for both new builds and retrofits. Elevate your space's insulation and structural integrity effortlessly.

Payment Terms, Domestic Reach & Seamless Delivery

We offer clear payment solutions tailored for businesses, along with packaging that ensures panels arrive in prime condition. Transportation is arranged to service all major domestic markets in India, with designated FOB ports for convenient drop-off. Each shipment is expertly packaged and managed end-to-end, facilitating punctual delivery and easy unloading. These rare panels are available for both small and large projects, optimizing access and project timelines, wherever required.

FAQ's of Insualted Roof Puf Panel:

Q: How are the Insulated Roof PUF Panels installed?

A: The panels are installed using a screw or clamp fixing method, combined with flashing and sealants for secure, weather-resistant placement. Their tongue and groove interlocking joint offers rapid and precise alignment.

Q: What are the main advantages of using these roof panels?

A: These panels provide optimum thermal and sound insulation, are flame retardant, lightweight, eco-friendly, and allow for fast installation while being suitable for various custom applications.

Q: Where can Insulated Roof PUF Panels be used most effectively?

A: They are ideal for cold storage, warehouses, industrial sheds, prefabricated structures, and commercial or residential buildings requiring efficient insulation and rapid deployment.

Q: What customization options are available for size and color?

A: Lengths up to 12 meters, thicknesses ranging from 30 mm to 150 mm, and standard or custom colors (including white, off-white, and silver foil) are available to meet unique project requirements.

Q: How does the panel promote energy efficiency?

A: The low thermal conductivity and high-density PUF core reduce heat transfer, locking in optimum indoor conditions while lowering energy costs associated with heating or cooling.
