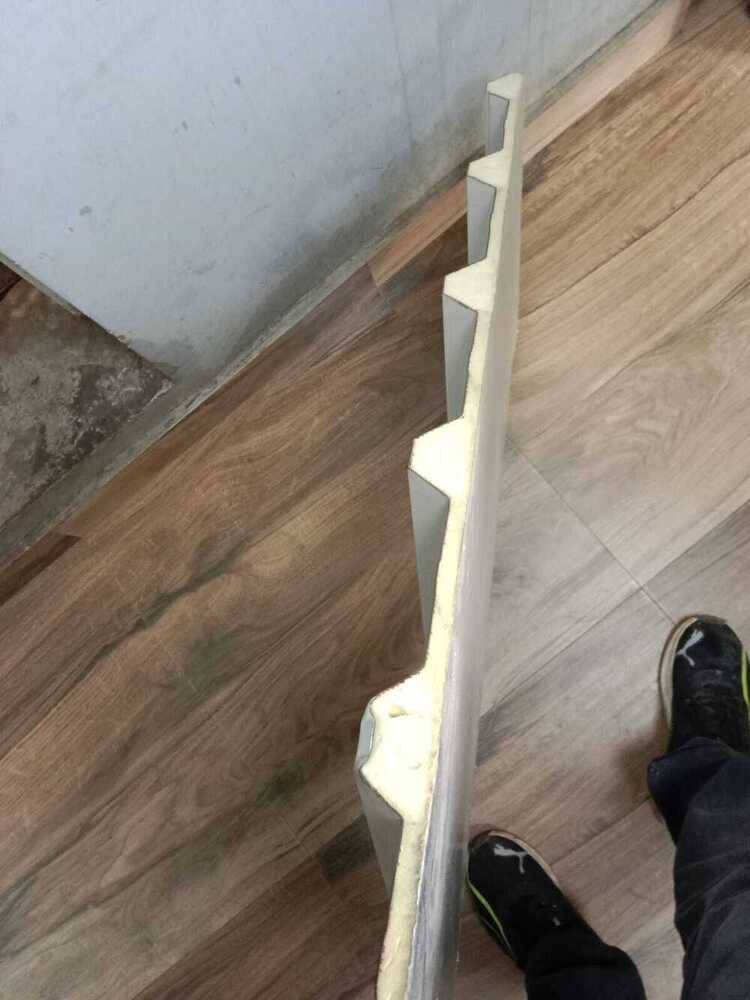

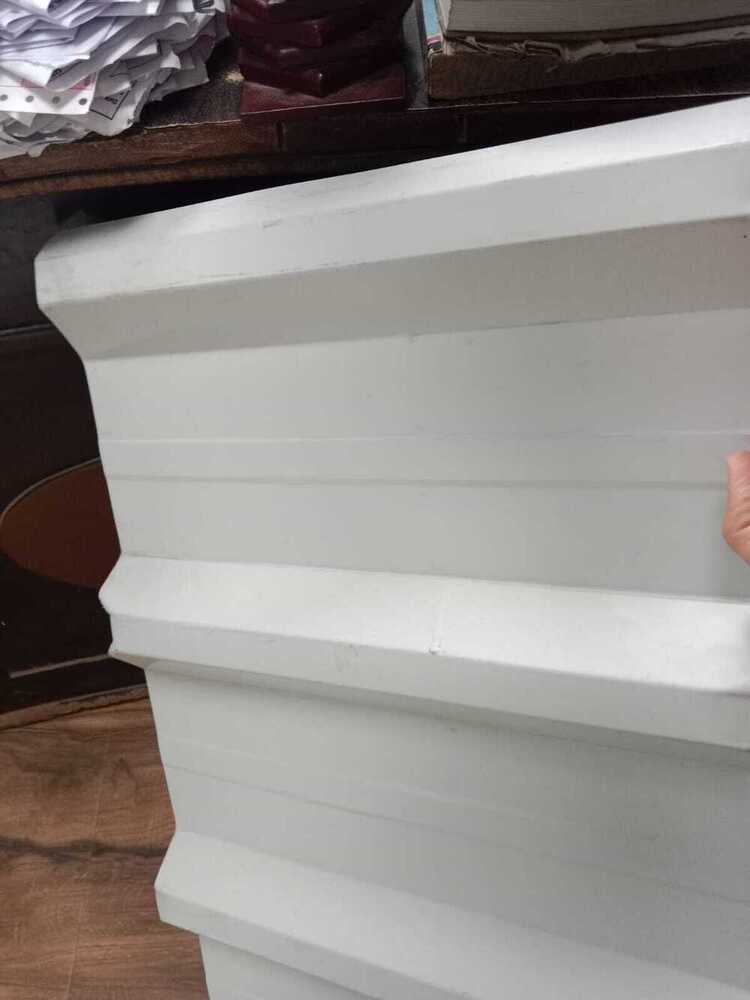

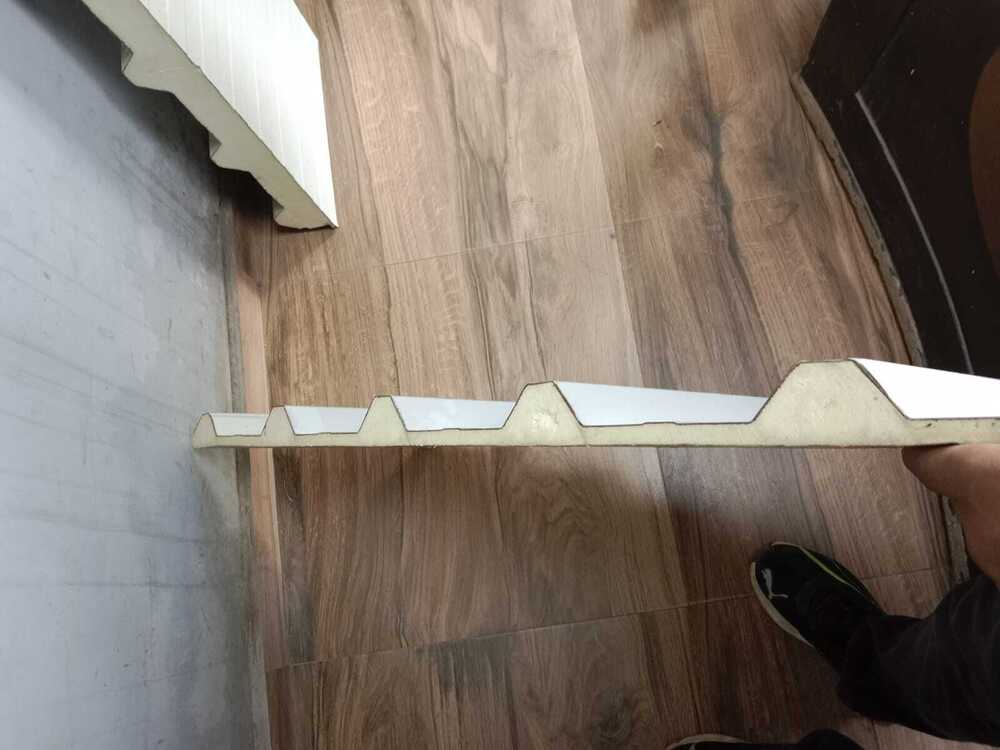

Insulated Wall Puf Panel

Name: Insulated Wall Puf Panel
Brand: SHANKAR STEEL SUPPLIERS
Price: 72 INR
Availability: InStock

Price 72 INR/ Square Feet

Get a Price/Quote

MOQ : 5000 Square Foots

Insulated Wall Puf Panel Specification

Purity
99% Polyurethane Purity

Machines Type
Panel Production: Roll Forming/Injection Molding Equipment

Application
Cold storage, prefabricated buildings, warehouses, factories, food processing units, clean rooms

Form
Solid, Pre-manufactured structure

Load Capacity
Suitable for wall cladding; load varies by thickness and mounting

Color
White or as per requirement

Installation Type
Modular; Interlocking Joint System

Thickness
40mm, 50mm, 60mm, 80mm, 100mm (as per requirement)

Material Grade
IS 14246 / IS 2062 (for steel sheets); IS 12436 (for PUF)

Features
Moisture resistant, corrosion resistant, easy installation, long life

Usage
External and internal wall insulation

Product Type
Insulated Wall Puf Panel

Main Material
Polyurethane Foam (PUF) with metal sheets

Surface Treatment
Pre-painted/Coated

Size
Customizable (Standard width: 1-1.2 meters, Length: Up to 12 meters or as required)

Weight
Varies based on thickness and length (typically 10-40 kg/m2)

Feature
High thermal insulation, soundproof, lightweight, fire resistant, weather resistant

Shape
Rectangular Panel with corrugated profile

Sound Insulation
Up to 27 dB (depends on thickness)

Core Density
402 kg/m3

Environmental Resistance
Resistant to bacteria, fungi, chemicals, and weather extremes

Water Absorption
< 0.20% by volume

Thermal Conductivity
0.02 - 0.024 W/mK

Panel Weight
Approx 10-14 kg/m2 (for 50mm thickness)

Compressive Strength
0.15 N/mm2

Panel Joint Type
Tongue and Groove/ Camlock

Fire Rating
Class 1 flame spread, Self-extinguishing

Facing Material
Pre-coated Galvanized Iron (GI), Pre-painted Galvalume or Stainless Steel sheets

Insulated Wall Puf Panel About

Experience the opulent engineering of our Insulated Wall PUF Panel, meticulously crafted with a core density of 402 kg/m3 and redoubtable strength. Favored for its rare blend of high thermal conductivity (0.02-0.024 W/mK) and fire-resistant design, this panel ensures optimal protection for cold storages, clean rooms, and factories. Manufactured from valuable pre-coated galvanized or stainless steel sheets, it offers instant checkout options online and has received favorable reviews globally. Self-extinguishing properties and robust sound insulation enhance its market value, making it a preferred choice for long-lasting, modular constructions.

Versatile Applications and Advanced Features

Used as an external or internal insulation solution, the Insulated Wall PUF Panel excels in cold storage, prefabricated buildings, and warehouses. Its features include moisture and corrosion resistance, easy installation through a modular interlocking system, and superior soundproofing up to 27 dB. This machine-manufactured panel is used by food processors, logistics firms, and pharmaceutical companies requiring strict environmental control, underscored by precision engineering and compliance with IS standards.

Order Completion and Packaging Excellence

Order completion for Insulated Wall PUF Panels adheres to strict timelines, ensuring valuable punctuality for clients across major domestic markets. Each panel is meticulously packaged, using protective materials for safe transit to the specified FOB port. These panels maintain their market value by arriving in pristine condition, thanks to innovative packaging that protects against external elements. Major Indian cities form the core of our distribution network, with robust processes ensuring rapid fulfillment and reliable delivery.

FAQ's of Insulated Wall Puf Panel:

Q: How can Insulated Wall PUF Panels be used in building projects?

A: Insulated Wall PUF Panels are suitable for external and internal wall insulation in cold storages, warehouses, prefabricated buildings, food processing plants, and clean rooms. Their modular structure and interlocking system make installation swift and efficient.

Q: What are the main advantages of these panels for industrial use?

A: These panels offer high thermal and sound insulation, are lightweight, moisture and corrosion resistant, resistant to bacteria and chemicals, and are fire rated as self-extinguishing. Their durability and easy installation add significant value in demanding industrial environments.

Q: Where are Insulated Wall PUF Panels typically supplied from?

A: The panels are distributed, exported, and supplied from India, with major domestic markets served across the country through an established supply chain and reliable distributor network.

Q: What materials and standards are used in manufacturing these panels?

A: The panels use polyurethane foam of 99% purity as the core, sandwiched between pre-coated galvanized iron, pre-painted galvalume, or stainless steel sheets. They comply with IS 14246/2062 for steel sheets and IS 12436 for PUF.

Q: How does the order and packaging process ensure quality delivery?

A: Once an order is completed, each panel undergoes quality checks and is securely packaged to protect against moisture, impact, and contamination, ensuring it retains its value and performs optimally on arrival.
